EXCLUSIVE OFFERING




Equipment Liquidation

Cortland Cable, Cortland, NY Liquidation Of The Following Manufacturing Assets

Cortland Cable, Cortland, NY, who has previously announced the closure and transfer of equipment from their Cortland, NY Cable Manufacturing Facility, has named Marty Kenner of Commission Brokers Inc., Cranston, RI, to handle the disposition of all assets not being transferred. Equipment to include Extrusion Lines, Braiders, Winders, Planetary Cabler, 3+1 Bow Twister, Serving Lines, Respoolers, 250,000lb Prooftest Machine plus many other items.  For additional information, please contact Mr. Kenner at 401-943-3777 or mkenner@commissionbrokers.com.

DRATEX 24-C Braider
2 – DRATEX 24
-Carrier Braiders, Type 2450-8, wire braid (https://www.wardwell.com/products/braiders/lever-arms/dratex-2450/)

      #1 – #29277, 1999, 36" (915mm) Capstan Wheel, SIEMENS Simatic OP7 Control, Motor, Sound Enclosure, LESS Take-up (see above website for full machine info)
      #2 – #29800, 2006, 36" (915mm) Capstan Wheel, SIEMENS Simatic OP7 Control, Motor, Sound Enclosure, LESS Take-up (see above website for full machine info)

TEXTILE MACHINE WORKS Model BW-4 Bobbin Winders** Some spare parts to be available
LOT – Spools for the DRATEX Braiders – 4.5" Dia x 3.25" ID (4" OAW)

2 – TEXTILE MACHINE WORKS
Model BW-4 Bobbin Winders w/12-Position Payoff, Motors

    #1 – #12399
    #2 – #12562

** Some spare parts to be available


1 – HERZOG 8-Carrier Braider, #85850, 1987 Motor, w/Take-up

LOT – Spools for the HERZOG Braider – 4.5" Dia x 3.25" ID (4" OAW)


1 – Custom Built 2-Pad Vertical Taping Machine, accepts 10" Pads, Motor, LESS Take-up


1 – Custom Built Vertical Braiding/Taping Machine, Motor, LESS Take-up
Braider: NEW ENGLAND BUTT 16-C #2
Taper: accepts 16" Pad


1 – Serving Line, 168-Spindle (48+72+48), Sections are Line shaft Driven, GE 15HP DC Motor, Controls, w/60" Caterpuller Capstan, Cleat type, 4" wide


1 – HUESTIS Cable Stripper, Model CJS100E 160, #CJS100E 160-085, CJS1000 Series, Approx. 2009/10

1 – Custom Built Taping Line, Motor, Take-up (in corner)

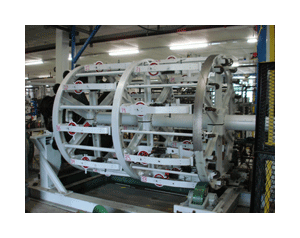

NEB 36-Bay Planetary Cabler
1 – NEW ENGLAND BUTT 36-Wire (18+18) 16" Planetary Cabler, Trunion, Cradles have 1.5" shafts; each Section has 15HP DC Motor; Eccentric Tape Head, 12" pads; 48" Single Wheel Capstan, 6" face w/5HP DC Motor;

SALTER BRECKNELL S122 Water Block System; All Controls; Older style NEW ENGLAND BUTT 72" A-Frame Take-up w/Custom Built front Traverse Stand; Overhead Hoists, COFFING 1/4T, w/Rails (Reel in cradle: 16" Dia. x 9.5" OAW)

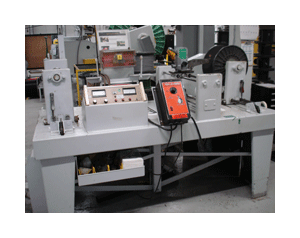

KENRAKE FWR-101 Respooler
1 – KENRAKE Model SP FWR-101 Table Top Respooler, #1-441-MI, 150lb capacity, SCR Control; CLINTON HF20E Sparker w/Bead Box; HYKON 1410 Counter, #84399

1 – 3+1 30" Bow Twister (either EDMANDS or ENTWISTLE), Binder Head; RELIANCE DC Motor w/Drive-All; Cradles have 2" shafts; Concentric Tape Head; 20" Dual Wheel Capstan, 6x6, 2" x 1.25" grooves; CM Valustar Overhead Hoist and Frame; LESS Payoff and Take-up

ENTWISTLE 1.25 EXTRUSION LINE

    PROTON PH300 Preheater1 – Custom Built 30" Motorized Shaft Payoff (2" shaft); Control

    1 – Payoff Dancer

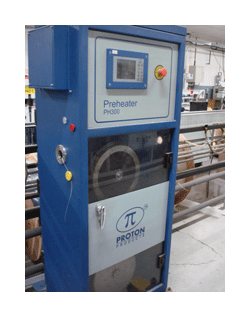

   1 – PROTON PH300 Preheater, Model PF300-12-480, #35A201, 12KW, 480v, 5/2011

    1 – ENTWISTLE 1.25" 20:1 L/D Extruder, Model EC1250, #656, Crosshead, Screw, Hopper; EATON 7.5HP Dynamatic Motor
➢ CONAIR TrueFeed Gravimetric Feed, Model TF, #TFM-11511, 5/09 ➢ UNADYN 50lb Modular Hopper, Model 929513, S.O. #160100 ➢ UNADYN Auto Mini Dryer, Model UDC-30, #113197.01-0893, S.O.. #113197

    1 – Master Temperature Panel, 5-Zone ATHENA Controllers; Digital Readout Screen

    1 - 10' Sliding Water Trough

    1 – PROTON InteliSENS SL Series, Model SL3060PI, #41B431, 4/2010, non-contact, unidirectional speed and length gauge (https://protonproducts.com/products/sl-series/sl-series/)

    1 - 20' Water Trough Section

    1 - TRITON 331 Laserlinc, #027014, Triple Axis Scanning Laser Micrometer (http://laserlinc.com/triple-axis_laser_micrometers.html)

    1 - CLINTON HF15AC Spark Tester, Model HF-15AC/BD-12, #HC12-0567, w/X3A Alarm

    1 – FERRO TECHNIQUE 12" Belt Wrap Capstan, Model EC-1, #9358-B, BALDOR-RELIANCE 2HP DC Motor

    1 – Custom Built 36" Shaft Take-up, Motor, Controller
PLUS: All Transformers, Water Circulation Tanks, etc., Controls, Drives

DAVIS STANDARD 2.5" EXTRUSION LINE

    1 – Set, Jack Stand Payoffs

    1 – CDS (CUSTOM DOWNSTREAM SYSTEMS) 60" Continuous Belt Caterpuller Capstan, Model CBH60-4V-L, #051107, 4" Belt Width, 4-100fpm; twin MARATHON 3HP Black Max Inverter-Duty Motors

    1 – PROTON InteliSENS Scanner Head, DG Series , Model DG2030, #010663, 5/2011 (https://protonproducts.com/products/dg-series/dg-series/)
DAVIS STANDARD 2.5" Extruder
    1 – DAVIS STANDARD 2.5" 24:1 L/D Extruder, Model 25IN25, S.O. #99332-C, #K0595, 17.28:1 Gearbox Ratio; Screw, Crosshead, BALDOR 40HP DC Motor
➢ CONAIR Hopper, Model CH24-15, #141592 ➢ Gravimetric Feeder ➢ HES Drive Cabinet ➢ CONAIR CM Carousel Dryer, Model CM-150, #152846

    1 – Master Temperature Panel, 7-Zone BARBER-COLEMAN 7EM Controllers; Digital Readout

    1 - 10' Sliding Water Trough

    1 – 40' 4x4 S.S. Water Trough

    1 - TRITON 331 Laserlinc, #027027, Triple Axis Scanning Laser Micrometer (http://laserlinc.com/triple-axis_laser_micrometers.html)
BARTELL 108" Take-up
    1 – CDS (CUSTOM DOWNSTREAM SYSTEMS) 60" Continuous Belt Caterpuller Capstan, Model CBH60-4V, #041107, 4" Belt Width, 4-100fpm; twin MARATHON 3HP Black Max Inverter-Duty Motors

   1 – BARTELL 108" Shaftless Take-up, Model SLPO108-1136-RH Shaftless Take-up, 1992, GE DC Motor (could not make out HP) [Payoff Model designation, retrofitted to a Take-up]

PLUS: All Transformers, Water Circulation Tanks, etc., Controls, Drives


LARGE FAB BUILDING

    1 – INSTRON 1135 Tensile Tester, #124 (no longer supported)

    1 – CHANT ENGINEERING 250,000 LB. Hydraulic Prooftest Machine, Model 8427-250-SC, #8427-0001, 1997, complete

    1 – WYKO-EWB 144-Position (72+72) Serving Machine, #79876, Taping Head; 1 – 48-Position Serving Machine, Tape Head; BALDOR 15HP DC Motor; 72" Payoff; Line shaft Driven; BARTELL Continuous Belt Caterpuller Capstan, #LC1974.405445LH, L/S to main Motor; 72" Shaftless Take-up (not positive of make); all Line Controls

     1 – CROWN Pallet Truck, Model 80PE-S, #H-16808-26, 8,000lb capacity

     1 – HOBART 'A' Series Charger, #190C02900, 24V (for CROWN)

POD #1 (#10475)

    1 – NEW ENGLAND BUTT 32-Carrier Braider, Single Thick Track Plate, Yarn Carriers, Capstan

    1 – WARDWELL 16-Carrier 'Speedmaster 150' Braider (appears to be incomplete)

    1 – FARRIS 18" Caterpuller Capstan (could not get to, rear of trailer – need to reconfirm Model and size)

POD #2 (#3679)

    1 – HERZOG RU2/24-80 Double Deck Braider 24-Carrier, Motor

    1 – NEW ENGLAND BUTT Serving Machine (?), Capstan

OUTSIDE

   1 – WEMCO 84" Take-up

   1 – EDMANDS 2-Pad Eccentric Taping Head, Model 4 Pad ECC Tape Head, #13781

   1 – Custom Built 6-Bay (3+3) 24" Planetary Cabler (22" wide Reel)

REELS / SPOOLS


3 – 96" Dia. x 46" ID (51" OAW) x 42" Barrel x 3" Arbor Hole, Steel, Toroidal, X Bracing

AMT – 72" Dia. x 36" ID (42" OAW) x 38" Barrel x 3" Arbor Hole, Steel, Toroidal, X Bracing

AMT – 60" Dia. x 30" ID (34" OAW) x 30" Barrel x 3" Arbor Hole, Steel, Toroidal, X Bracing

AMT – 48" Dia. x 30" ID (34" OAW) x 24" Barrel x 3" Arbor Hole, Steel, Toroidal, X Bracing

9 – 48" Dia. x 20" ID (24-3/4" OAW) x 24" Barrel x 2-3/4" Arbor Hole, Steel (beige)

** There are other size Toroidal steel Reels outside, narrower I.D.'s – will get listing
*** Not positive how many other 'In Process' Reels will be available, sizes or quantities

LOT – Warehouse Shelving, rated 5000lb capacity – 6 Rows – 25' Length, between 3 to 5 bays/row







PHOTOS AVAILABLE - Contact: Martin Kenner
