NEW EXCLUSIVE OFFERING

Special Offering - Late model Planetary Cablers/Stranders, Tandem Extrusion Line

Commission Brokers Inc. is proud to announce the offering of late model and seldom available 1800mm, 800mm and 630mm Planetary Cablers/Stranders, and a 150mm/45mm Tandem Sheathing Extrusion Line. Equipment as new as 2017, still installed and operational.

Please contact Martin Kenner at Commission Brokers for all information relating to the above and to coordinate an inspection.

For additional information, please contact Mr. Kenner at 401-943-3777 or mkenner@commissionbrokers.com.

SMARTER GROUP 12-Bobbin 800mm Planetary Stranding Line, L-R line direction, to include:

WUXI NANFANG 2000mm Portal Traversing Payoff, 10T capacity; 12-Bobbin 800mm Planetary Cabler w/12-Head 250mm fixed pay-offs for drain wire or filler wire, 110KW AC Motor; 600mm Dual Head Tangential Taper w/15KW Motor; Counter; WUXI NANFANG Caterpuller Capstan w/11KW Motor, 2500kg pull force, 120mm belt width; WUXI NANFANG 3150mm Portal Traversing Take-up, 15T capacity, 11KW Take-up Motor; Safety Cover; Jib Crane (500kg); Reels; complete Electrical Control System, Drives, etc., New 2012

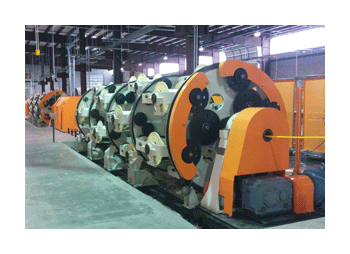

SMARTER GROUP 54-Bobbin (24+30) 630mm Planetary Cabling and Armor Line (for stranding insulated cable cores and can also be used for steel wire armoring of cable), R-L line direction, to include:

WUXI NANFANG 2000mm Portal Traversing Payoff, 10T capacity; 24-Bobbin 630mm Section w/90KW AC Motor, 30-Bobbin 630mm Section w/110KW AC Motor (the final 12-Cradles of the 30-Head Section have automatic tension control); 2 - 600mm Dual Head Tangential Taper w/15KW Motor; Counter; WUXI NANFANG 5395mm x 120mm belt width Caterpuller Capstan w/45KW Motor, 6000kg pull force; WUXI NANFANG 3150mm Portal Traversing Take-up, 15T capacity, 11KW Take-up Motor; Jib Crane (500kg); Reels; complete Electrical Control System, Drives, etc., New 2012

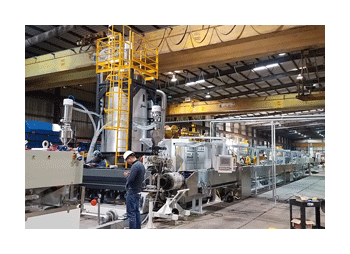

WUXI NANFANG 150mm/45mm Sheathing Tandem Extrusion Line (suitable extrusion of TPU, MDPE Thermoplastics), L-R line direction, to include:

2900mm x 180mm belt width Caterpuller Capstan w/18.5KW Motor, 4000kg pull force; 150mm 25:1 L/D Extruder, Screw, Crosshead, 200KW DC Motor; 45mm 25:1 L/D Secondary Extruder, Screw, Crosshead, 11KW DC Motor; Main Operator Control Panel; Hopper Dryer, 5000 Litre capacity; Multi-Station Hopper Loader; Dehumidifier; 20T Chiller; 24m Cooling Trough, Air Wipe; Counter; 2900mm x 180mm belt width Caterpuller Capstan w/18.5KW Motor, 4000kg pull force; WUXI NANFANG 5M Extra H.D. Portal Traversing Take-up, 40T capacity, 18.5KW Take-up Motor; complete Electrical Control System, Drives, etc., New 2017

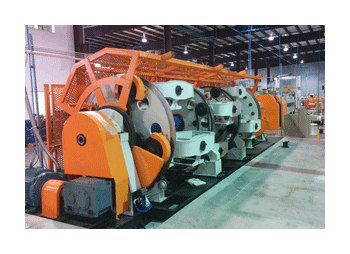

CORTINOVIS 12-Bobbin 1800mm Planetary Cabler Line (for Umbilicals and Steel Tubes w/3/8” - 1.25” Dia.), R-L Line direction, to include:

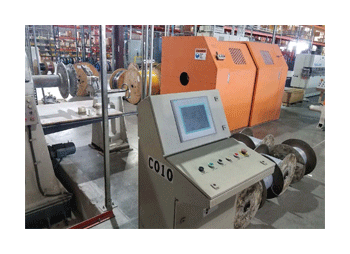

WUXI NANFANG 5M H.D. Portal Traversing Payoff, 40T capacity, New 2017; CORTINOVIS 12-Bobbin 1800mm Planetary Strander and 12 x 20” Static Payoffs for filler wire; Dual Eccentric 500mm Taping Head; 400mm x 160mm belt width Caterpuller Capstan, 7.5T pull force; WUXI NANFANG 5M Extra H.D. Portal Traversing Take-up, 40T capacity, 18.5KW Take-up Motor, New 2017 (this is also used as the Payoff for the Extrusion Line); Steel Reels; complete Electrical Control System, Drives, etc. This Cabler has been recently refurbished – Cradle Bearings replaced, Under Rollers aligned.

REELS / SPOOLS

1800mm DIA x 914mm ID (1050mm OAW) x 900mm Barrel x 127mm Arbor Hole, Steel

800mm DIA x 500mm ID (600mm OAW) x 400mm Barrel x 127mm Arbor Hole, Steel

630mm DIA x 420mm ID (475mm OAW) x 250mm Barrel x 127mm Arbor Hole, Steel

630mm DIA x 415mm ID (475mm OAW) x 315mm Barrel x 127mm Arbor Hole, ABS Plastic

PHOTOS AVAILABLE - Contact: Martin Kenner
